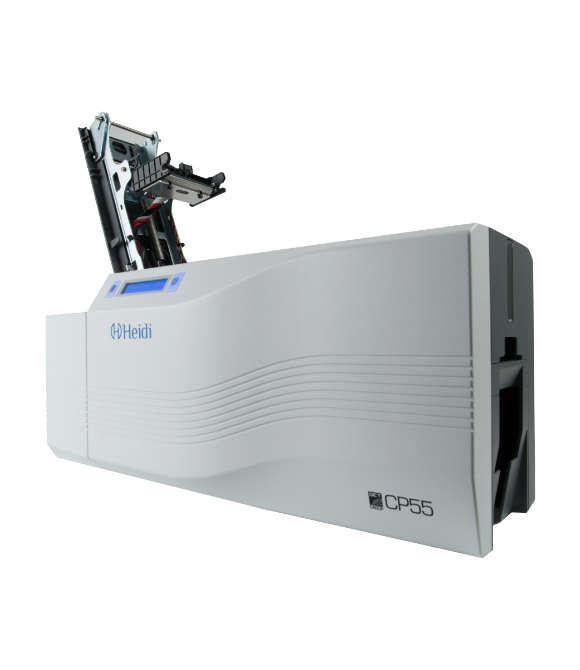

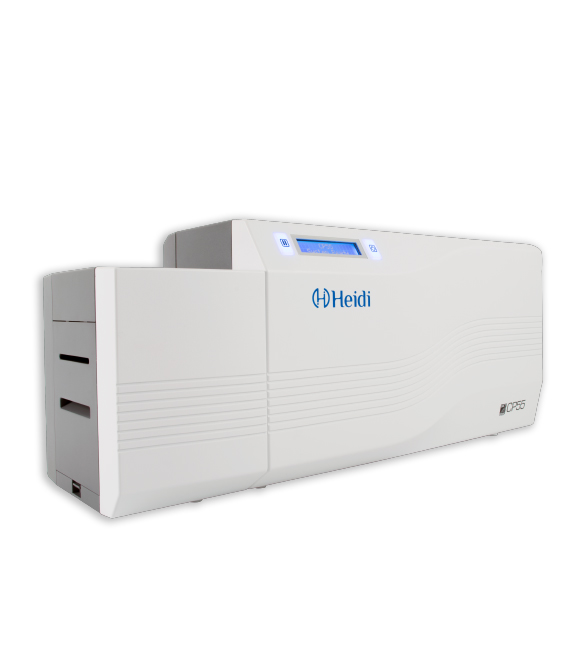

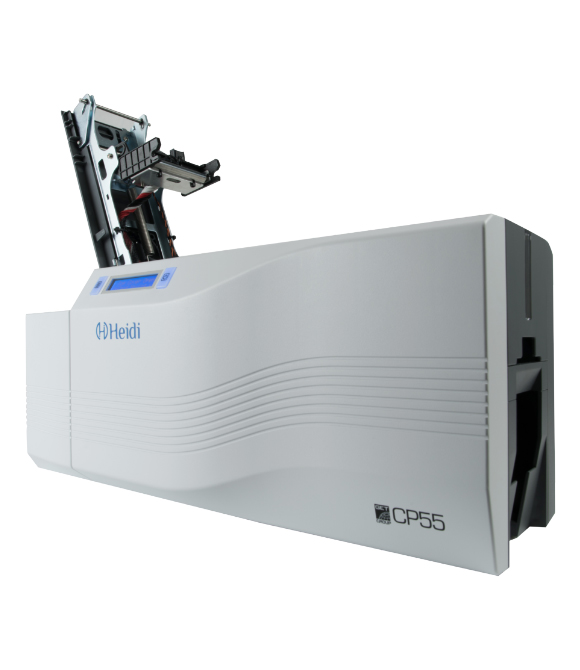

Heidi CP55-D Dual-Side Card Printer

The modern dual-sided card printer Heidi CP55-D was built to effectively fulfill client requirements for a high-performance and easy-to-use card printer. It was carefully designed by GET Group to deliver an outstanding printing quality at a competitively lower cost-per-card and to remarkably serve a wide range of card-issuance applications. It is perfect for low-to-medium production requirements.

Features and Benefits

Heidi CP55 is a high-speed direct-to-card printer built to deliver innovative imaging and excellent printing quality at a competitive cost-per-card. It is a highly adaptable solution designed to serve many sectors within various user environments and card-issuance operations. Heidi CP55 is simply deployed, operated and maintained.

User-Friendly
Easy-to-use and maintain, simply plug and print.

Durable yet affordable
Reliable operations, high-resolution printing offered at a reasonable price.

Highly Scalable
An all-in-one printing solution with upgradable options, ribbons and software.

Technical Specifications

Standard Features
Printing Method Direct to card dye-sublimation/resin thermal transfer
Accepted Standard CardSizes/Format ISO CR-80 (3.375˝L x 2.125˝W/85.6 mm L x 54 mm W)
Accepted Card Thickness 0.38mm (15mil) ~ 1.0mm (40mil)
Resolution 300 dpi (11.8 dots/mm)
Print Area CR-80 (3.36˝L x 2.11˝W/85.3 mm L x 53.7 mm W)
CPU AM3352 600MHz
Printing Speed Color (YMCKO): 170 cards/hour
Color (YMCKOK): 130 cards/hour
Black Overlay (KO): 360 cards/hour
Mono (Black): 720 cards/hour
Print Ribbon Options Full-color with resin black and overlay panel, YMCKO, 250 prints/roll
Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints/roll
Resin black with overlay panel, KO, 600 prints/roll
Mono (Black, Gold, Silver): 1,200 cards/roll
YMCUVO Blue: 200 prints/roll
Half YMC Full KO: 350 prints/roll
Input Hopper Card Capacity 100 cards (200 cards with cover open)
Output Hopper Card Capacity 40 cards (100 cards with option backside stacker)
Card Cleaning Cleaning roller with each cartridge
Memory ROM: 2MB, RAM: 64MB
Software GET Identity (ID Card Design & Management Software)
Interface USB 2.0, Ethernet Optional
Display 2 Lines(16×2) LCD & LED
Power Free Voltage (110/240V AC), 50 ~ 60 Hz, 45W
Dimensions 486mm(W) x 208mm(H) x 166mm(D)
Operating Environment Temperature: 20 ~ 35℃, Humidity: 20 ~ 80%
Weight 6.0 Kg
Certification CE, CB, FCC
Operating System Support for Printer Driver Windows 7/8/10, Linux, Mac
Warranty 24-month standard depot warranty | 24-month print head warranty
Kensington Lock Back side
Field-Upgradable Options
Magnetic Stripe Encoder ISO7811 (Track Ⅰ, Ⅱ, Ⅲ Read/Write)  HiCo/LoCo
Contact Smart Card Encoder ISO/IEC 7816-1,2,3,4: IC Cards with contacts
EMV Terminal Level 1 version 4.1
Contactless Smart Card Encoder ISO14443 (Type A/B)
MIFARE®, MIFARE DESFire® iCLASS®
EMV2 2000 Level 1
Ethernet TCP/IP 10/100 BaseT
Physical Lock Top cover lock
